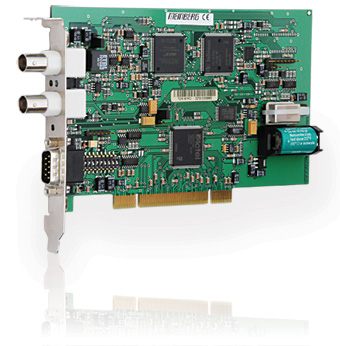

TCR167PCI:
IRIG Time Code Receiver and Generator for Computers (PCI/PCI-X bus)
Key Features:
- PCI LOCAL BUS interface, 3.3V or 5V, 33MHz or 66MHz, PCI-X compatible
- RS232 interface
- Reception of time code formats IRIG A/B or AFNOR
- Optional optical input and/or output for time codes
Reception/Generation of IRIG-A/B or AFNOR time codes
The board TCR167PCI has been designed to receive and to generate IRIG and AFNOR time codes.
The module provides two input channels for decoding of modulated and unmodulated time codes in IRIG-A/B or AFNOR format.
The board TCR167PCI can generate time codes in IRIG-B or AFNOR format. These signals are provided as modulated (3 Vpp/1 Vpp into 50 ohm) and unmodulated (TTL into 50 ohm and RS-422) time codes.
