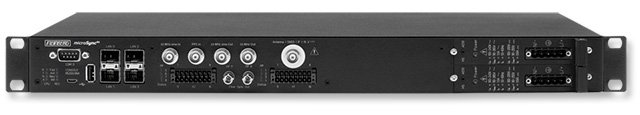

microSyncRX - Powerful IEEE 1588 PTP Grandmaster and NTP Server in a 19 inch Rackmount Enclosure

Powerful IEEE 1588 PTP Grandmaster and NTP Server in a 19 inch Rackmount Enclosure
Get a Quote!

Key Features:

  • High performance (S)NTP server
  • Meinberg Device Manager for configuration and status monitoring
  • Powerful IEEE 1588 PTP time server incl. IEC/IEEE 61850-9-3 & IEEE C.37.238
  • Selectable GNSS reference time sources
  • Different oscillator options for advanced holdover performance
  • All microSync models offer a wide range of multiple output signals, allowing synchronization of both network devices such as NTP clients and PTP slaves as well as directly attached synchronization clients with other electrical and optical signals
  • Optional power supply redundancy with support with AC and DC power sources
  • Optional OLED display with a rotary controller for initial network set-up and status monitoring

Meinberg's versatile synchronization solution with redundant power supply, a reliable and universal sync solution for a large range of different industries and applications.

Meinberg's microSyncRX is a feature-rich synchronization devices, offering a high level of efficiency and versatility and impresses with high port density and optional redundant power supplies.

Providing two IEEE 1588 ports, the microSyncRX models are powerful GNSS synchronized PTP Grandmasters offering a high level of accuracy and supporting all major PTP profiles: Default, Power, Telecom (Frequency and Phase profiles), SMPTE, AES67/RAVENNA or IEEE 802.1AS profile.

All microSyncRX variants offer key features like multiple programmable output signals (two over fiber optical ST connectors), four Gigabit Ethernet interfaces and the ability to synchronize both NTP and PTP devices.

The sheer diversity of outputs and interfaces allows the microSyncRX to be deployed in a large range of industries and applications. Depending on industry requirements customers can choose from different variants to best suit their needs.

The variants are defined via the BNC connectors which can provide several I/O options.

OLED Display Option


Figure: microSyncTRX with front panel display and controls
microSyncRX models can optionally be fitted with an OLED display on the same side as the connectors, while the corresponding microSyncTRX models are equipped with an OLED display on the opposite side to the connectors. This provides flexibility for a diverse range of rack configurations and arrangements.

The OLED display provides an easily readable, well-lit status readout at all times, showing the current time & date, the clock & receiver status, and the current network configuration.

In conjunction with the rotary controller, the OLED display also provides an easy method of configuring the port LAN0 (IP address, netmask, gateway, and DHCP) for use as a network-reachable management port during set-up.
