PCI and PCIe Slot Cards

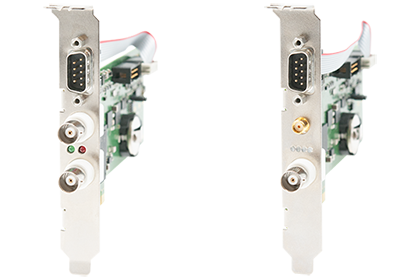

GPS170PEX: GPS Receiver for PCI Express (PCIe) TCR511PEX: IRIG Time Code Reader for PCI Express

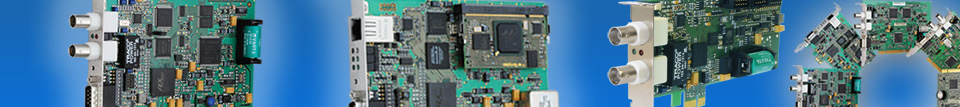

The MEINBERG Slot Cards has been designed to synchronise the system time of computers with PCI/PCI-X or PCI Express interface.

The latest generation of MEINBERG GPS170PCI GPS Synchronized PCI Slot Cards adds programmable TTL outputs as a feature. The IRIG output provides a source of synchronization for slave MEINBERG TCR511PCI or TCR167PCI IRIG Synchronized Slot Cards.

PCI/PCIe Local Bus Interface
3.3V or 5V, 33MHz or 66MHz, PCI-X compatible
Plug and Play
Periodic Interrupts
RS232 Interface
Pulse per Second and Pulse per Minute
2 Time Trigger Inputs
External Antenna, DC Insulated (up to 300 m of RG58 coax cable)
DCF77 Emulation
Flash-EPROM, Bootstrap Loader
Driver Software for most Operating Systems
IRIG-B/AFNOR Timecode Output
Programmable TTL outputs

PCI - The Peripheral Component Interconnect Bus

The name PCI has been derived from Peripheral Component Interconnect which describes a set of industry standard computer bus architectures which are used to connect components on the computer main board to each other, and also provides an expansion bus to install add-in cards.
