Meinberg GPS Timing Systems

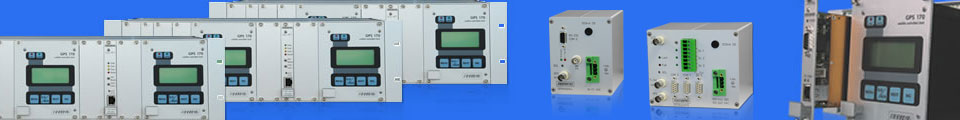

GPS Systems in Desktop, MultiPac, Railmount and 3U Rackmount configuration
- Integrated Power Supply
- Serial RS232 interfaces
- LC Display for configuration (LCD models)
- Frequency outputs: 2.048MHz, 10MHz
- Time Capture Inputs, TTL
- Pulses Per Second, Minute and Hour (PPS, PPM, PPH)
- Alarm Relay Output, Changeover Contact
System onfiguration by use of the provided monitor software, connected to the system via the serial interface COM0 in the front or rear panel.
System onfiguration via the 2x40 character front panel LC Display or by use of the provided monitor software, connected to the system via the serial interface COM0 in the rear or front panel.
The GPS/MP systems provides different optional outputs, i.e. three progammable pulse outputs, modulated/unmodulated Time code output, and up to a total of four RS232 COM ports. Additionally, you can order the receivers with different OCXOs (OCXO-LQ / MQ / HQ /DHQ or an external Rubidium) to match the required accuracy.
The base for all our GPS synchronized systems GPS clock appliance in rack mount enclosure for customized time and frequency synchronization systems.
The Global Positioning System (GPS) is a satellite-based radio-positioning, navigation, and time-transfer system. It was installed by the United States Departement of Defense and provides two levels of accuracy: The Standard Positioning Service (SPS) and the Precise Positioning Service (PPS). While PPS is encrypted and only available for authorized (military) users, SPS has been made available to the general public.
- Satellite Receiver GPS170
GPS170 - GPS Satellite Receiver with LC display and control panel
- GPS Receiver Power Stations
Satellite Receiver with integrated time code generator (DIN Mounting Rail)
- Rail Mount GPS Receiver
Satellite Receiver for DIN Mounting Rail - Solution for applications that merely require a single RS-232 serial port
- GPS Receiver - Eurocard
GPS170SV : GPS Satellite Receiver (Eurocard)
- GPS System in Modular Case
Ready-to-operate GPS systems built up in rackmount slimline (1U) modular cases
- OEM GPS Time Receiver
OEM module for synchronization of telecom networks!
- Modular GPS Time and Frequency Synchronization System
GPS170BGT - GPS Satellite Receiver HF Modular Rack Case
