VP100/20:
LED Large Display - serial or network connected
Key Features:
- RS232 interface
- Stand Alone Clock
- 50mm LED Display for Time and Date
- 20 mA Interface
LED Large Display VP100 optional as NTP slave clock VP100NET

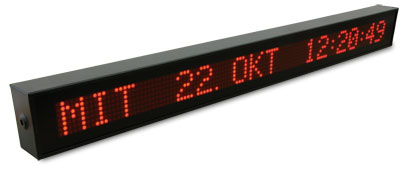

Large display VP100/20 with good visibility and 50mm height LED characters, working as:
- radio clock with integrated DCF77 receiver
- free running clock (with or without automatic changeover in daylight saving) or as NTP display (VP100/20/NET)
- Text messages can be displayed: fixed, flashing or running characters, programmable via PC
The large display VP100/20 is a 50mm hight LED matrix display that shows time and date 20 character wide as follows: day of the week, day of month, month, hours, minutes and seconds.
It can be driven as a free running stand alone clock or as a radio clock with integrated DCF77 receiver.
The power connector, the antenna input and the RS232/20mA interfaces provided by VP100/20 are accessible via connectors in the rear panel of the case.
The time, the language, the brightness and the automatic changeover of daylight saving can be edited by using the MENU and SET buttons.
