GPS164:
Satellite Receiver

Key Features:

• Aluminium profile case for 35mm DIN mounting rail
• Antenna connected with up to 300m of standard coaxial cable RG58
• NEW: time code or serial time string configurable for optocoupler outputs
• Modulated an unmodulated IRIG-B or AFNOR Outputs
• DCF77 Simulation
• Programmable pulses and switching times
• Remote control and monitoring with included PC-software (COM0)
• Aluminium profile case for 35mm DIN mounting rail

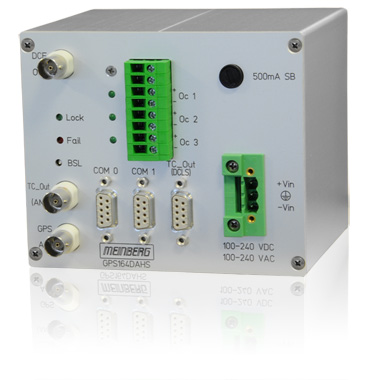

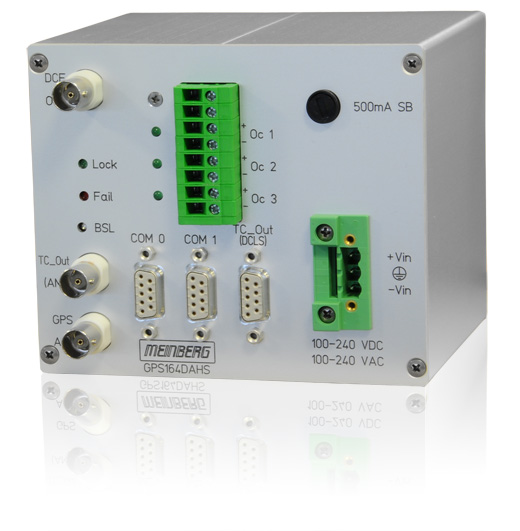

The GPS164xHS is designed for mounting on a DIN rail. The front panel integrates five LED indicators, a hidden push button, an eight-pole terminal block, theree DSUB- and three BNC-connectors. The receiver is connected to the antenna/converter unit by a 50 O-coaxial cable with length up to 300 m (when using RG58 cable). It is possible to connect up to four receivers to one antenna by using an optional antenna diplexer.

Available time codes
The time code generator of the module GPS164xHS is able to generate the timecodes shown below. The modulated codes (IRIG B122/B123, AFNOR, IEEE1344) are available via the BNC-connector, the unmodulated codes (IRIG B002/B003 and IEEE1344) via a DSUB connector in the front panel.
