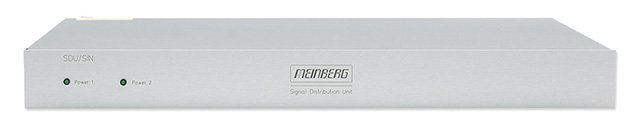

SDU/SIN: Signal Distribution Unit - 1-25 MHz sine wave distribution for 19-inch rack
Key Features:
- Maximum 24 outputs (2x 1:12 distribution module)
- Status LEDs of the power supply units and input error relay
- One or two distribution modules in one housing
- Compact 1U design, for 19-inch rack
The SDU/SIN system is a signal distribution unit that provides 12x or 24x buffered sine wave signals (1-25 MHz) with low additive phase noise.
10,000 Hz | -125 dBc/Hz |
100,000 Hz | -133 dBc/Hz |
1,000 kHz | -143 dBc/Hz |
10,000 kHz | -154 dBc/Hz |
100,000 kHz | -156 dBc/Hz |
1,000 MHz | -159 dBc/Hz |

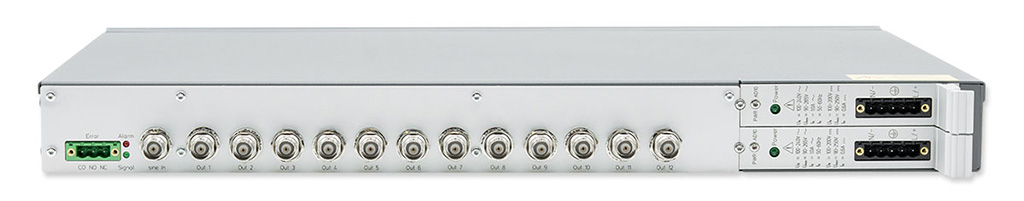

SDU/SIN/AD10 with one input signal, twelve sine wave outputs via BNC socket and an AC/DC power supply unit
Input Signals
1 - 25 MHz sine wave, - 8 to + 8 dBm, BNC socket
Output Signals
1 - 25 MHz sine wave at 50 Ohm, BNC socket, gain 0 dB
Option:
850 nm multimode FO outputs, F-ST connector
